Tenergy TB6AC 50W/5A AC/DC Dual Power Universal Balance Charger

SKU: T-01322 TENERGYOut of stock

  • - Ability to handle NiMH, NICD, Li-Po,Li-ion, Li-Fe, SLA Batteries
  • - Built-in balancing chip w/ intelligence
  • - Built-in temperature sensor
  • - Optimized operating software: When charging or discharging, TB6AC has an 'AUTO' function that sets the feeding current or the cell count of the battery automatically. Especially for Li-ion/Li-Polymer batteries, it can prevent the over-charging can lead to an explosion by users fault.Every program in the unit is controlled with mutual links and communication for every possible error so it introduces a maximum safety. These can be set at user's discretion
  • - Dual input power: TB6AC employs the circuit that can be operated with the input power of AC(Alternating Current) or DC(Direct Current). For AC input, it contains a AC-DC switching power supplier which has 5A of power capacity and maximum output power of 50Watts for charging. As a result it can charge up to 16 cells of NiCd/NiMH and 6 series of Li-ion/Li-Polymer batteries with maximum current of 5.0A.
  • - Individual voltage balancer for Li-ion/Li-Polymer batteries inside: TB6AC has an individual-cell-voltage balancer inside.So it does not need any balancer separately when charging Li-ion/Li-Polymer batteries (LiIo/LiPo/LiFe) for cell voltage balancing.
  • - Balance individual cells on discharge: TB6AC also can monitor and balance individual cells of the battery pack during the discharge process. If the voltage of anyone cell varies abnormally, the process will be stopped with the error message.
  • - Accept various types of battery: TB6AC can accept three types of specialty batteries (besides standard NiCad and NiMH) - LiIo, LiPo and LiFe. They have different characteristics by their chemistry. You can select any one of them that you are going to process before the job.
  • - Battery 'Fast' and 'Storage' mode: You can charge Li-ion/Li-Polymer battery for special purposes. 'Fast' charge reduces the charging time of battery and storage mode controls the final voltage of the battery to be suit for long time storage.
  • - Data store/load: For users convenience it can store maximum 5 data of different batteries. You can establish the data contains program setting of the battery to charge or discharge continually. These data can be called out at any time you need and the process can be executed without program setting.
  • - Cyclic charging/discharging: Perform 1 to 5 cycles of charge>discharge or discharge>charge continually for battery refreshing and balancing.
  • - Robust outer aluminum case: High-quality aluminum case is durable and very efficient to cool out the internal heat

$69.95
Qty

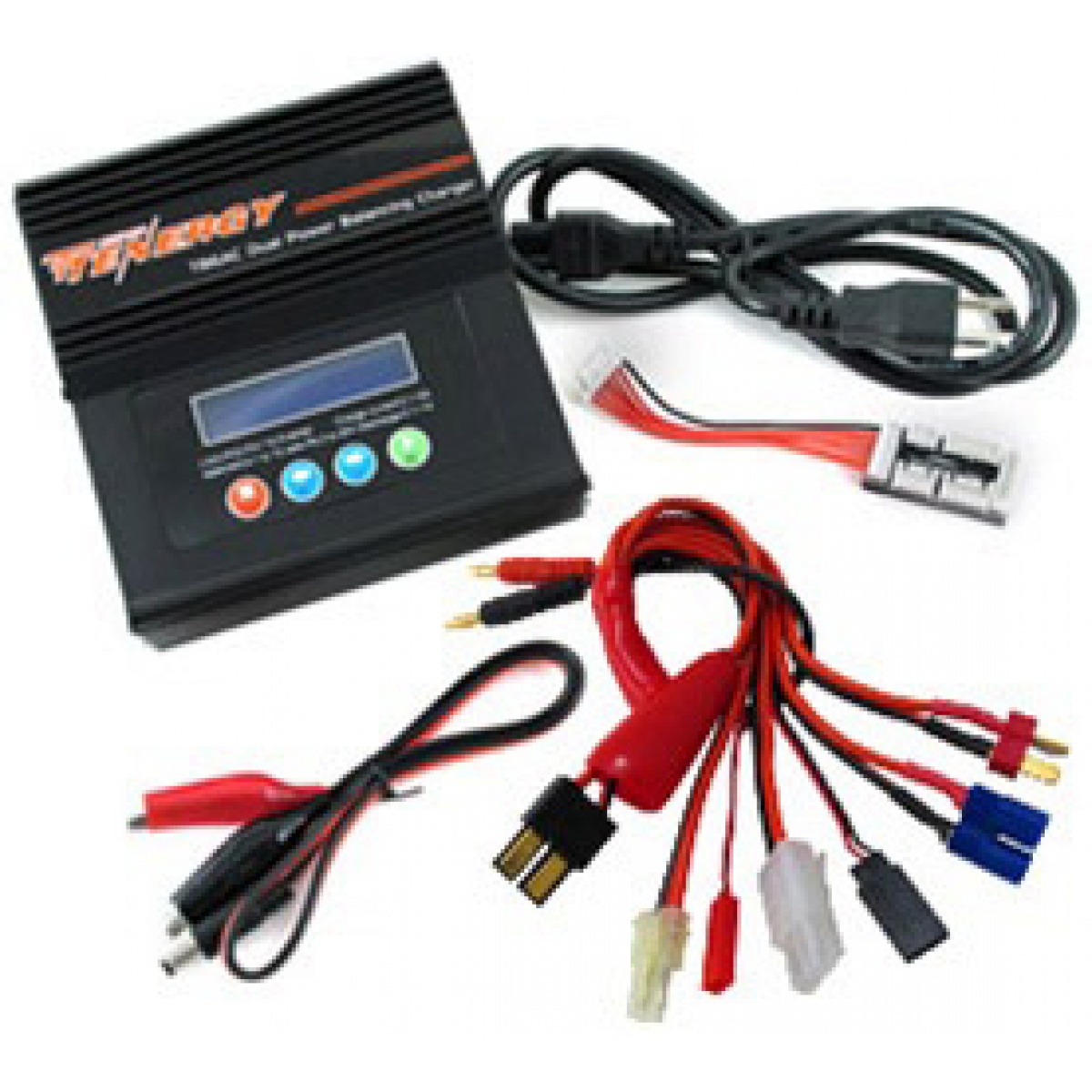

In the Box

Specifications:

- Operating voltage DC 11~18 volts
- Charge power max. 50 Watts
- Discharge power max. 5 Watts
- NiCd/MH 1~15 cells
- LiIo/LiPo/LiFe 1~6 series
- Pb 2~20V
- Charge current 0.1 to 5.0A
- Discharge current 0.1 to 1.0A
- No. of cycle 1 to 5 times
- Battery data memory up to 5 data
- Weight 585g
- Dimension 140*148*45mm
