    Home / ASTER V2 SX Expert with Quantum Trigger - (Rear Wired)

    ASTER V2 SX Expert with Quantum Trigger - (Rear Wired)

    SKU: GATE-AST2S-EMR GateIn Stock Map ProtectedPrice is map protected. Coupon(s) may not be applied to this item.

    • Full compatibility with popular brushless motors and up to 11.1 V batteries
    • Enhanced heat dissipation under high loads
    • Operates with stronger springs up to M200
    • Includes free Quantum Trigger with customizable sensitivity
    • Trigger programming with easy-to-use LED, vibration, and selector feedback
    • Self-learning automatic pre-cocking with LOW, MID, HIGH modes
    • Active Brake with adaptive mode
    • Calibration via trigger and selector only
    • USB-Link and Blu-Link compatibility for firmware updates and diagnostics
    • Hair-trigger detection with up to 60 sensitivity levels in the first millimeter
    • Foregoes reverse polarity protection for improved performance
    • Part of the GATE Ecosystem with app and accessory support
    • Firmware updates via Internet
    • Built-in voltage boost converter for stable operation with low or weak batteries
    • Deep sleep mode with ultra-low 0.29 mA current consumption
    • Operates at very low voltage, even 1.2 V during shots
    • Supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gear setups
    • Option to use a mechanical trigger lock
    • Durable 1 mm thick PCB construction
    • Enhanced Sensor Diagnostic Mode
    • Rev. 2 De-Cocking system
    • Designed as the next-gen replacement for ASTER SE
    $72.90
    Qty



    ASTER V2 SX Expert with Quantum Trigger - (Rear Wired)

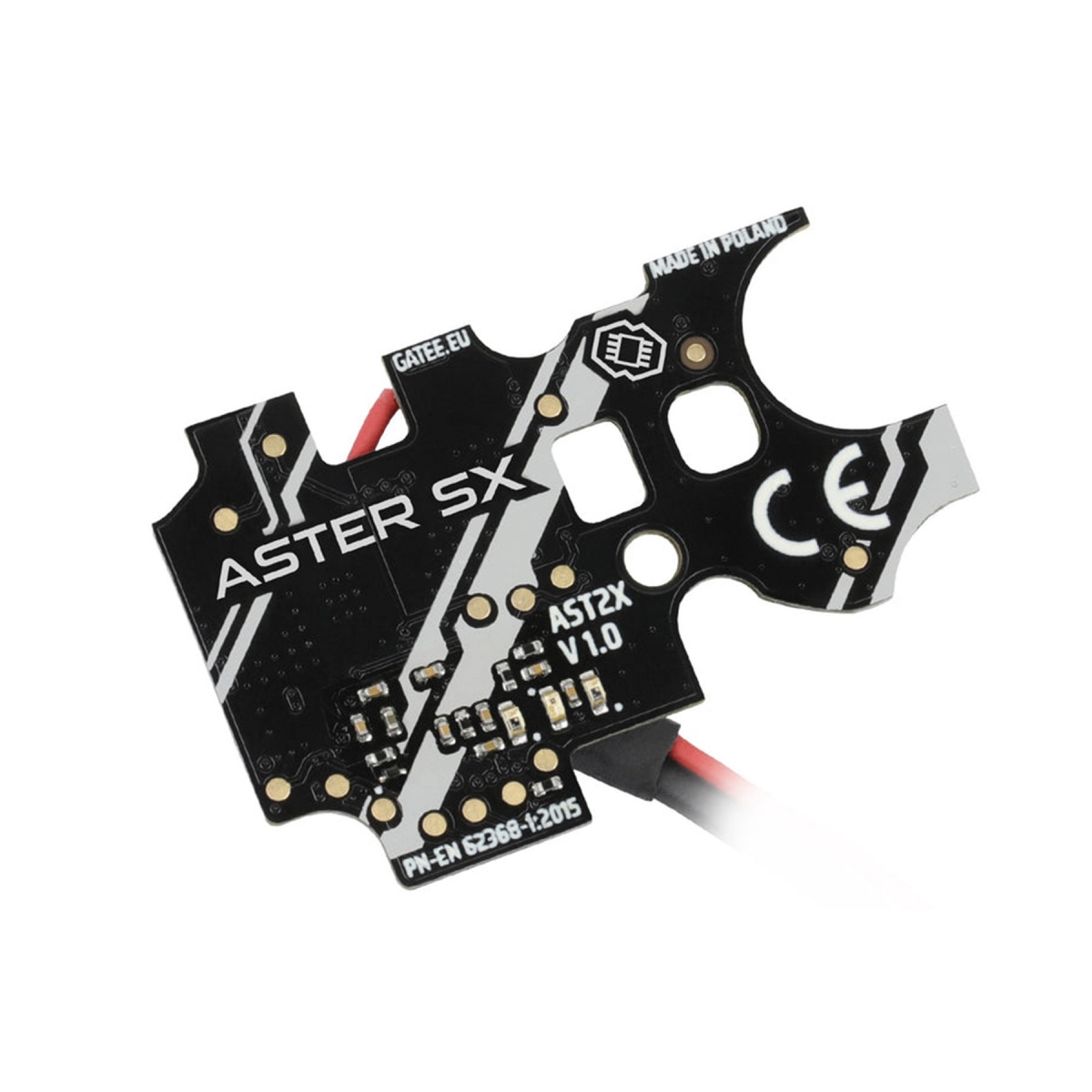

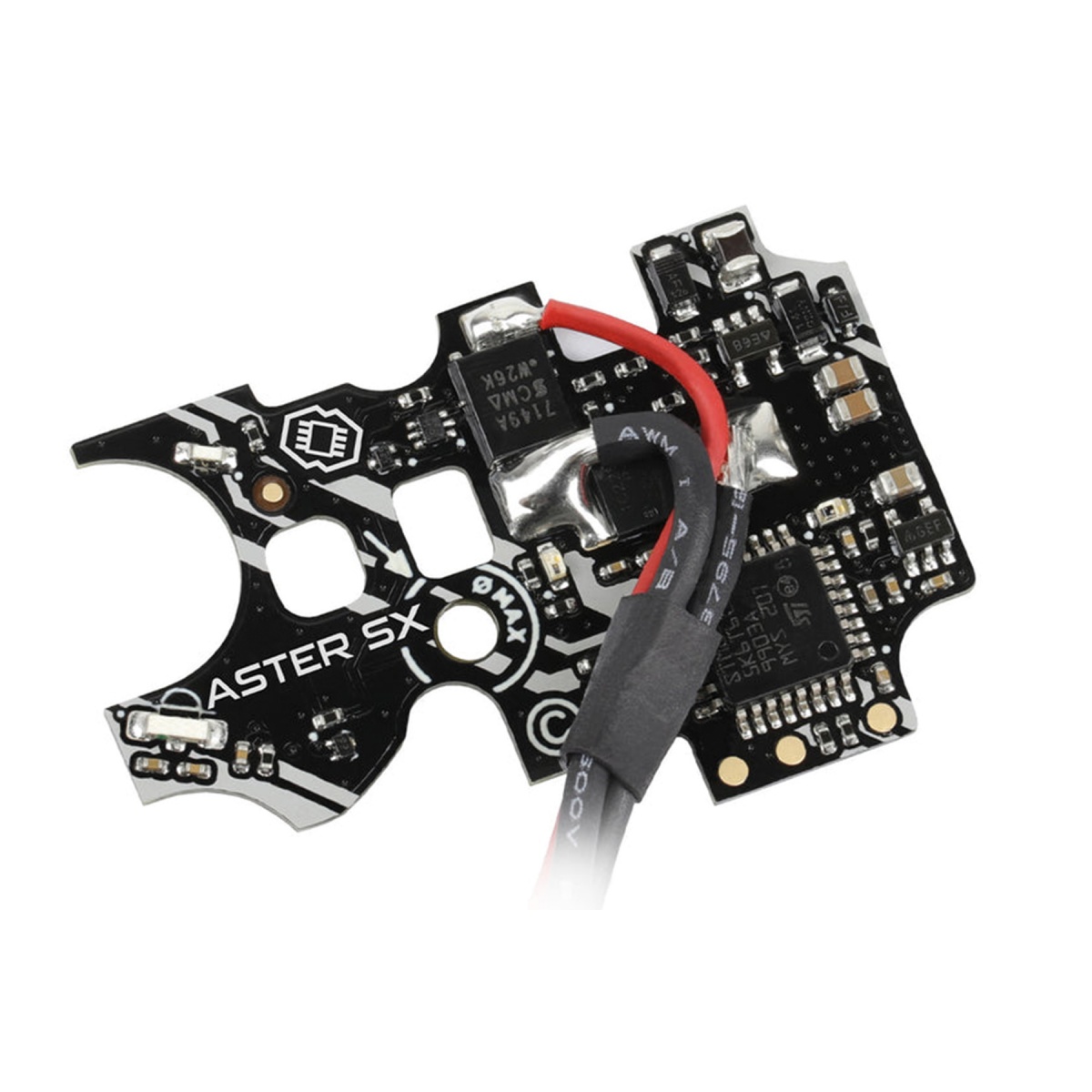

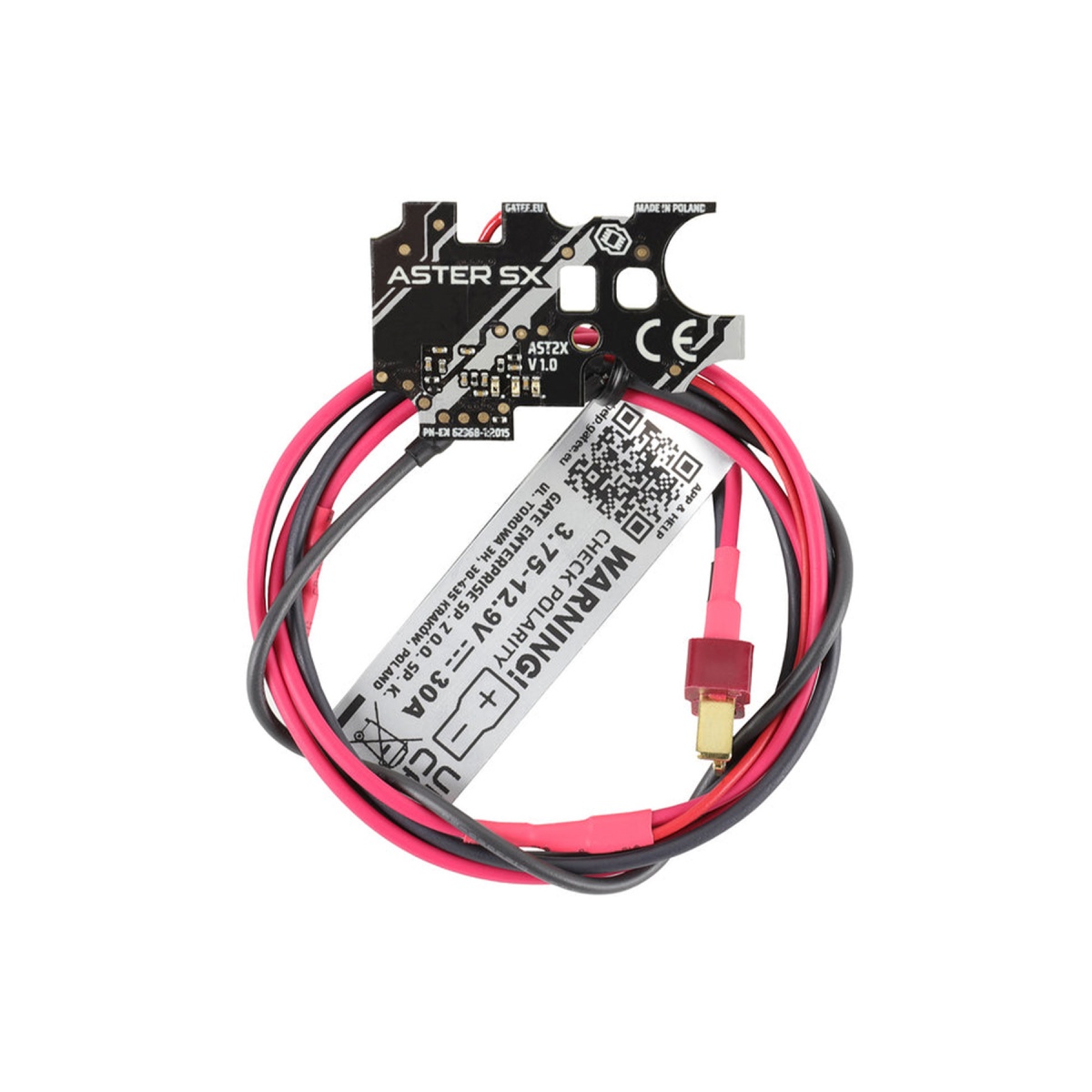

    The ASTER V2 SX Expert with Quantum Trigger is GATE's most advanced electronic trigger unit yet, engineered to push your rear-wired V2 gearbox build beyond conventional limits. Designed as a next-generation upgrade to the ASTER SE, this unit features full compatibility with brushless motors and supports up to 11.1 V LiPo batteries, making it ideal for high-performance airsoft setups. A built-in voltage boost converter allows reliable operation even with weak or heavily drained power sources, down to as low as 1.2 V during firing. With a 1 mm thick PCB and enhanced heat dissipation under heavy loads, the ASTER SX can run M200 springs and demanding configurations without overheating or failure. It also supports DSG, SSG, 19-tooth, and Infinite Torque-up gears, giving you a broad range of tuning possibilities.

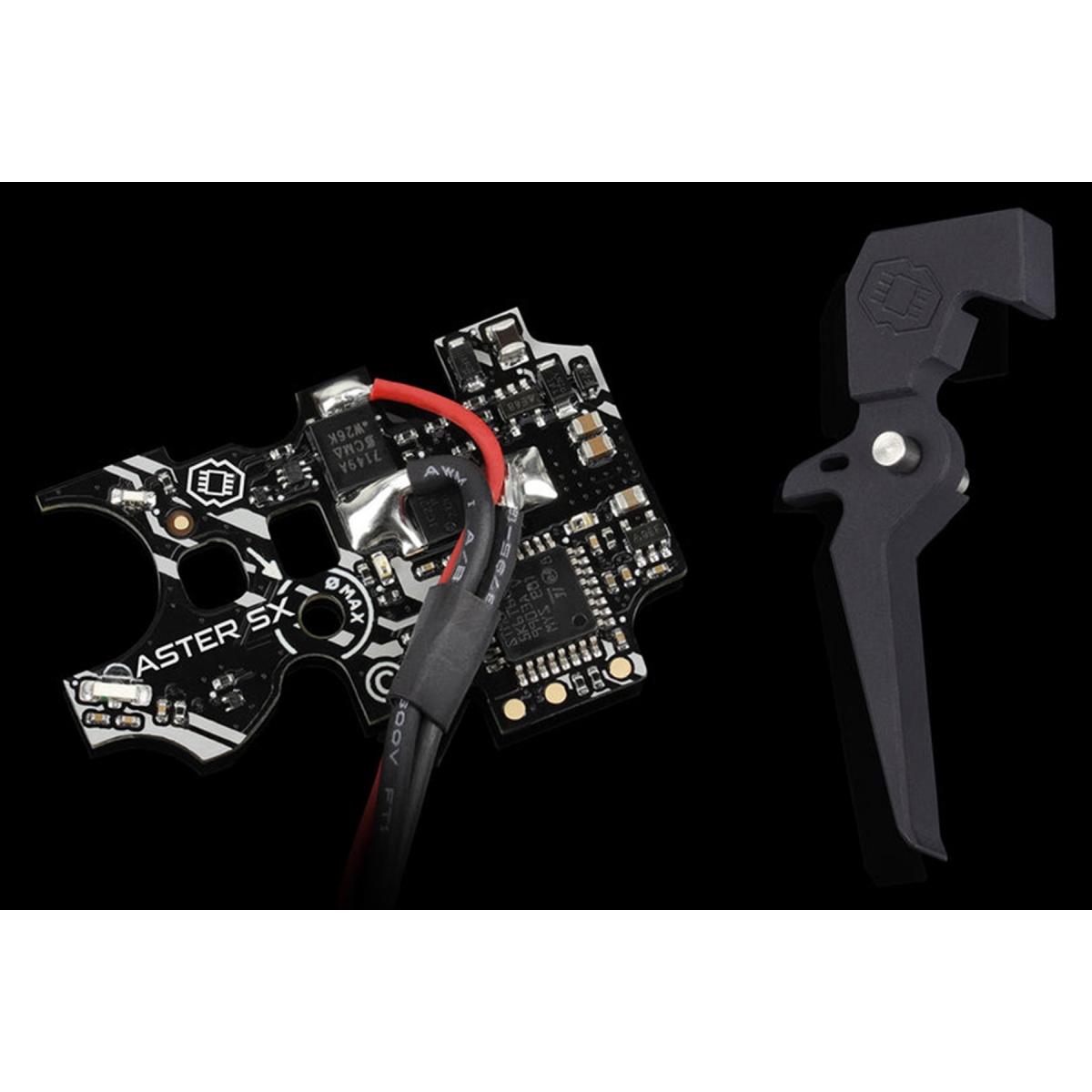

    This model includes a free Quantum Trigger that allows precision hair-trigger programming with up to 60 levels of sensitivity in just the first millimeter of pull. Easy trigger and selector-based programming lets you set pre-cocking modes, adaptive braking, and trigger sensitivity without any cables. For even deeper control, connect via USB-Link or Blu-Link to access diagnostics, firmware updates, and expanded settings using the GCS App. The ASTER SX also features a deep sleep mode with just 0.29 mA draw to preserve battery life during downtime. Built to be future-proof and compatible with the full GATE Ecosystem, this ETU delivers lightning-fast response, mechanical lock options, and superior feedback via LED, vibration, and selector positioning. Whether you're upgrading for MILSIM realism or competitive edge, the ASTER V2 SX Expert transforms your AEG into a precision instrument built for modern airsoft warfare.

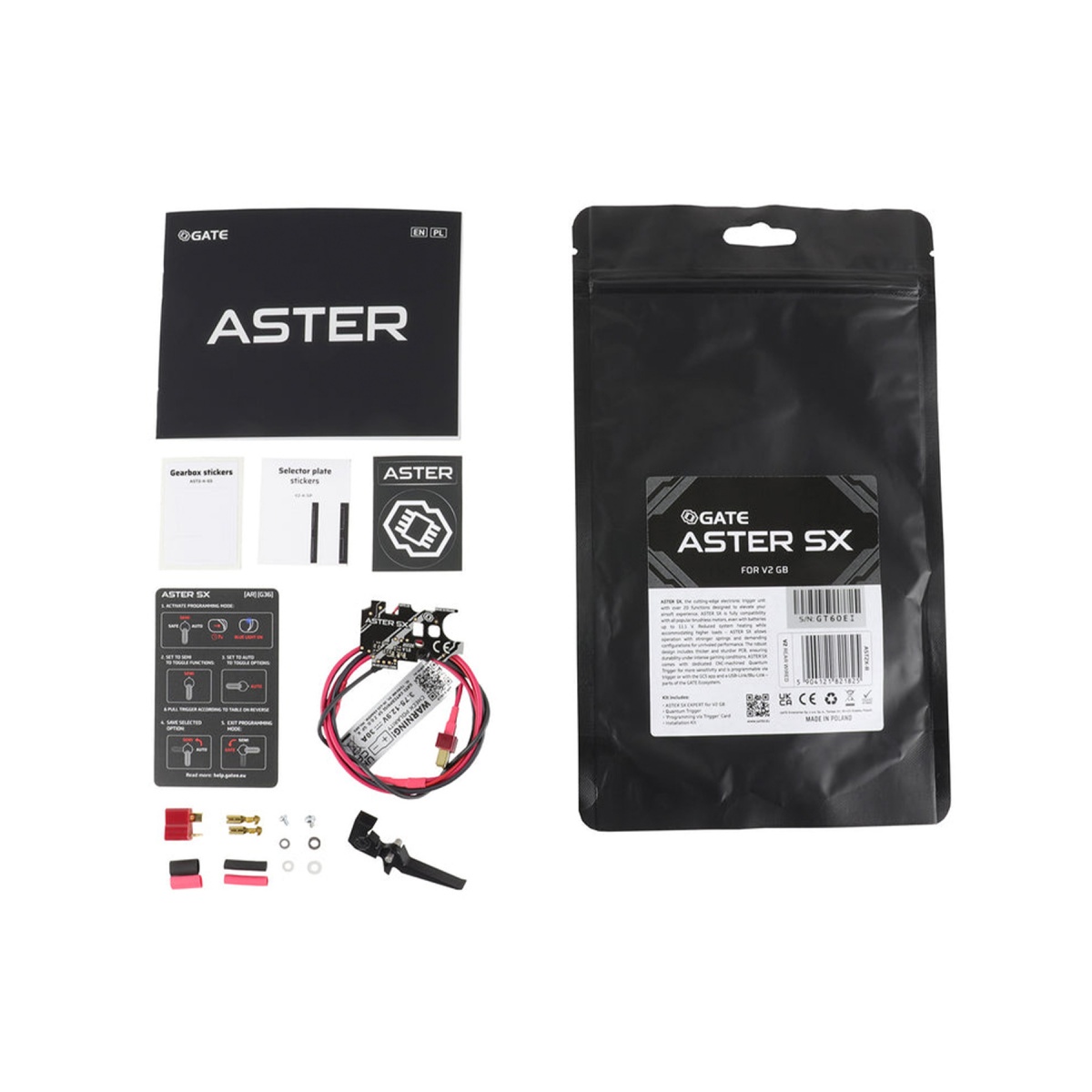

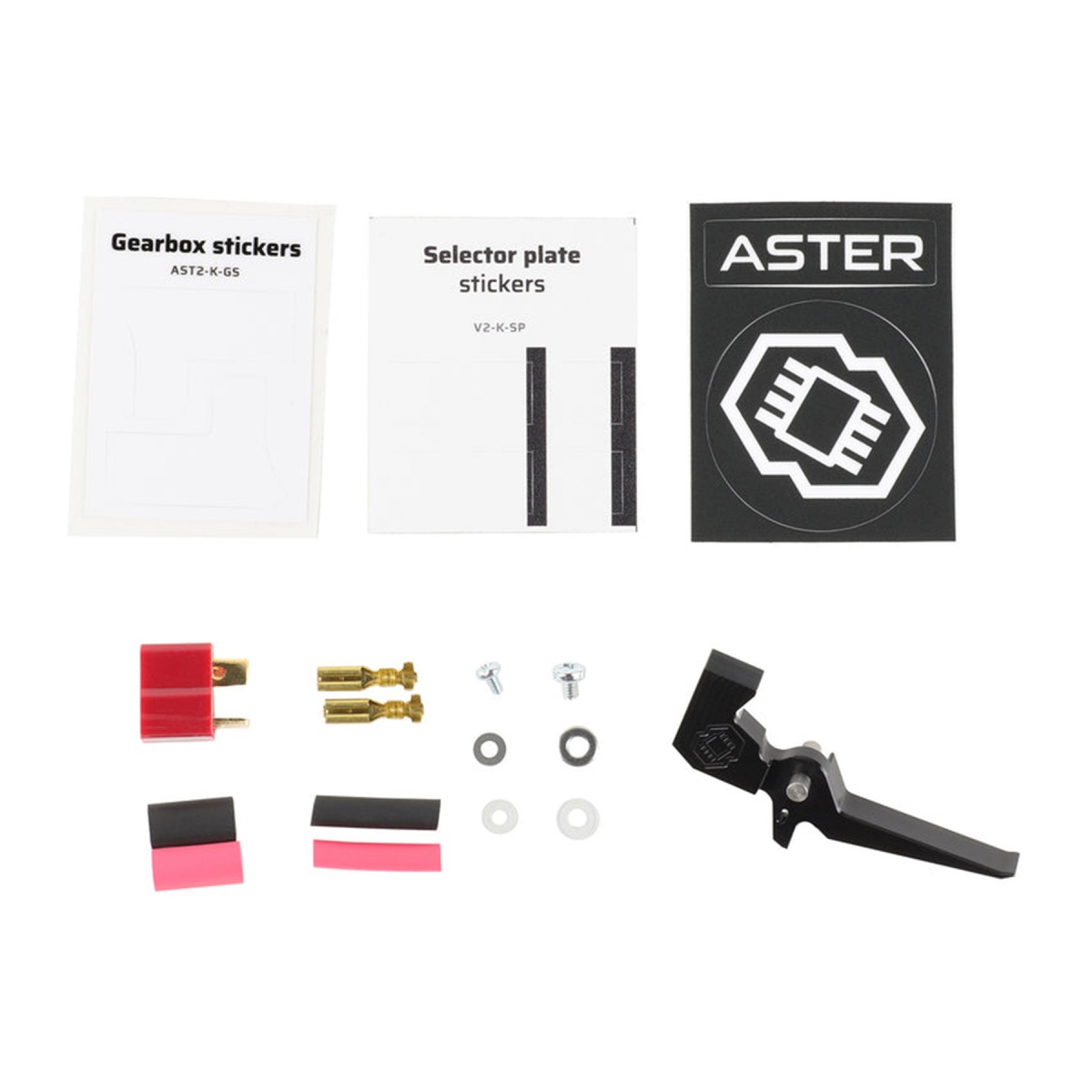

    In the Box

    1x Mosfet

    1x Trigger

    Specifications:

    Brand GATE
    Model ASTER SX V2 Expert
    Compatibility V2 gearboxes
    Trigger Quantum Trigger included
    Spring Compatibility Up to M200
    Motor Compatibility Brushless and brushed motors
    Battery Support Up to 11.1 V LiPo
    Voltage Operation As low as 1.2 V during shot
    Firmware Updates USB-Link and Blu-Link compatible
    PCB Thickness 1 mm
    Sleep Mode Current 0.29 mA
    Advanced Programming Trigger or GCS App
    Pre-Cocking Automatic, 3 modes
    Brake System Adaptive Active Brake
    Gear Compatibility DSG, SSG, Infinite Torque-up, 19T, standard
    Color Black (Quantum Trigger may vary)
